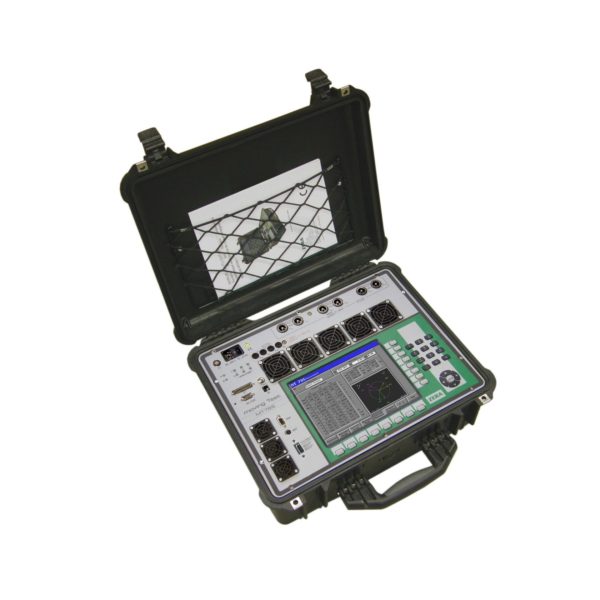

MT781

Portable Test System
Phases: 3
Accuracy class: 0.1
Generation: 500 V / 120 A
Measurement: 500 V / 120 A

Phases	3
Accuracy class	0.1
Current generation max.	120 A
Voltage generation max.	500 V
Current measurement max.	120 A (direct measurement) 30000 A (via special current clamps)
Voltage measurement max.	500 V
Display	10.5" Coloured
Main functions	Actual values, vectorial and curve display Current and voltage generation Error measurement Measurement of harmonics up to the 40th
Scope of application	On-site measurement with load simulation Simulation of load while testing meter installations on-site
Specials	Automatic measurement Energy dosage Generation of harmonics up to the 40th Programmable waveforms for voltage and current (optional) Selective power measurement (optional)
